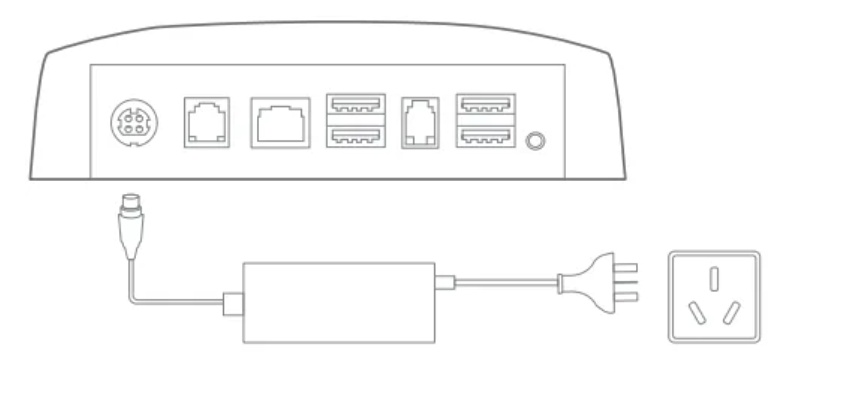

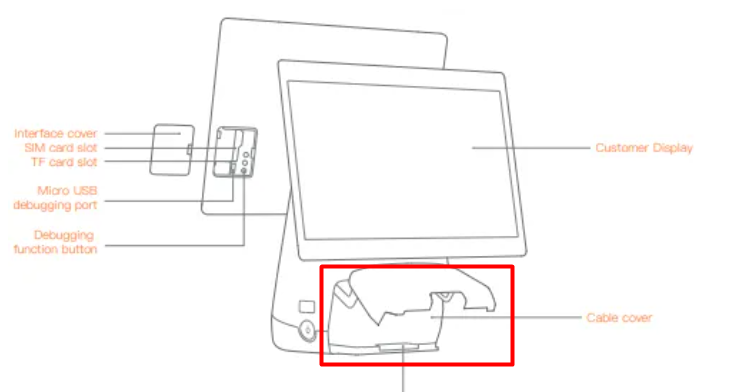

1. Open the lid on the bottom back of the device.

4. Once the device turns on, go to Settings and then connect to a WiFi network.

5. Open the eHopper POS app.

6. On the login screen, enter the Account ID and License Key that you received from your initial eHopper welcome email.

Internal Printer Setup on All-in-One Device

Connecting Internal Printer to Device

1. Scan for Bluetooth devices in the tablet Settings.

2. Select to pair the tablet with the internal printer.

Setting up Internal Printer on POS

1. Log in to POS.

2. In the left navigation menu, tap on Settings--->Printer Setup

3. On the Printer Settings screen, tap Search for printer on the top right.

4. The printer should show up under both Receipt Printers and Kitchen Printers. Check off the box(es) of whichever one(s) you would like to set up your printer to print.

Note: For kitchen receipts to print, you must select the Kitchen Receipt option in the Receipt tab of your Back Office Store Settings.

• For info on setting up directional printing for your kitchen printers, please see https://ehoppersupport.zendesk.com/hc/en-us/articles/360009811693-Directional-Printing

5. Choose either 80mm or 58mm as the paper width for both printer types.

6. The option Print Test Page will appear to the right of the printer. Tap it to print a test page to ensure that the printer is set up properly.

7. Confirm your printer settings by tapping the DONE button. The printer should now be set up to work on your tablet.

eHopper Cash Drawer Setup on All-in-One Device

Overview

Before you can use the eHopper Cash Drawer on the All-in-One device, you will have to connect it to the device (or external printer) and set it up on eHopper.

 Connecting eHopper Cash Drawer

1. Connect the cash drawer to the All-in-One device (or to Star or BTP printer if using one of those) via an RJ12 connector by inputting it into the cash drawer port on the back of the device.

2. Turn on the device and the cash drawer should be ready to operate.

Setting Up eHopper Cash Drawer on POS

1. Log in to eHopper POS

2. In the left navigation menu, tap on Settings--->Cash Drawer

3. Tap Search for the cash drawer.

4. In the list that appears, select the printer that the cash drawer is connected to.

5. Tap the Test link to the right of the selected printer. If the drawer opens, it is properly set up.

6. Confirm cash drawer settings by tapping DONE.

7. The cash drawer will open upon each transaction in POS.

APG Cash Drawer Setup on All-in-One Device

Overview

Before you can use the APG Vasario Cash Drawer on the All-in-One device, you will have to connect it to the device (or external printer) and set it up on eHopper.

Connecting APG Vasario Cash Drawer

1. Connect the cash drawer to the All-in-One device (or to Star or BTP printer if using one of those) via an RJ12 connector by inputting it into the cash drawer port on the back of the device.

2. Turn on the device and the cash drawer should be ready to operate.

 Setting Up APG Vasario Cash Drawer on POS

1. Log in to eHopper POS

2. In the left navigation menu, tap on Settings--->Cash Drawer

3. Tap Search for the cash drawer.

4. In the list that appears, select the printer that the cash drawer is connected to.

5. Tap the Test link to the right of the selected printer. If the drawer opens, it is properly set up.

6. Confirm cash drawer settings by tapping DONE.

7. The cash drawer will open upon each transaction in POS.
