DejaVoo Terminal Setup on eHopper POS

DejaVoo Terminal Setup on eHopper POS

Overview

  • US and Canadian merchants can set up and use Z1 or Z11 Dejavoo terminals to process integrated credit and debit card payments via eHopper.
  • DejaVoo terminals support both, English and French languages.



Z1 DejaVoo Terminals

  • Connects via WiFi
  • Does not have a touch screen, so signatures cannot be captured on the terminal.



Z11 DejaVoo Terminals

  • Depending on the terminal model, it may connect either via WiFi or Ethernet.
  • Has a touch screen, so signatures can be captured on the terminal.



Setting Up DejaVoo Terminals in POS

1. Log in to eHopper Back Office and navigate to Settings--->Store Settings in the left navigation menu.

2. In the Contacts tab, ensure that Canada or United States is selected from the Country drop-down.

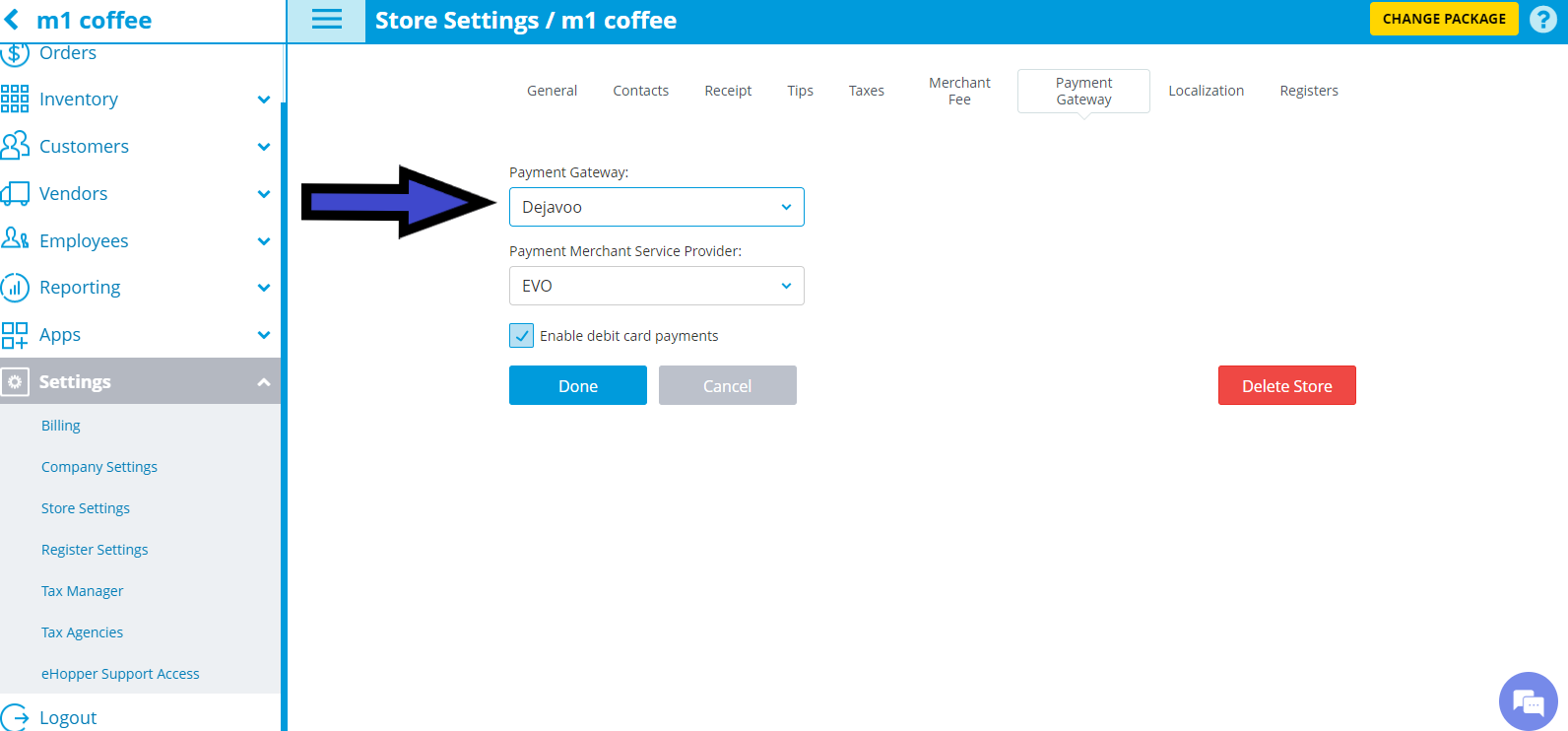

3. In the Payment Gateway tab, select Dejavoo from the Payment Gateway drop-down.



4. Select the DONE button.

5. Log in to POS and sync data.

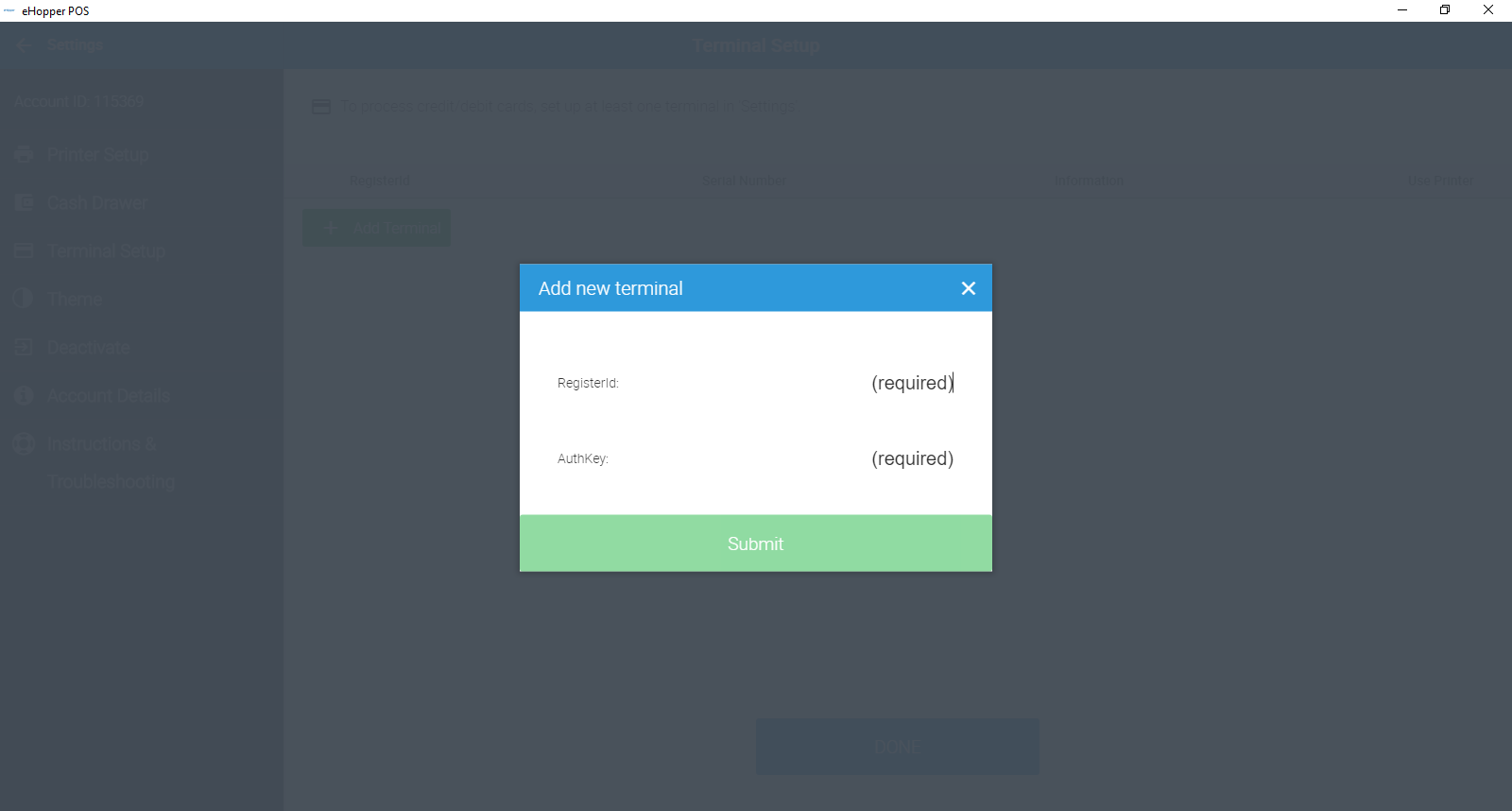

6. Select Settings--->Terminal Setup in the left navigation menu.

7. Enter the terminal's RegisterId and AuthKey.

​

8. Select the Submit button.

  • If the Dejavoo terminal was successfully connected, you should now be able to process card payments.
